Low Frequency Small Vibrating Screen
Review the YCHH0300 and YCHH0200 compact screen options for laboratory samples, small-factory batches, tea leaf grading and multi-grade screening requirements.
Motor power, material, voltage, layers and outlet direction should be confirmed from the material condition, mesh size, capacity and destination country. 201 stainless steel is standard, and 304 stainless steel can be customized.
Product Features
Compact motor power for small batch screening and sample separation.
201 stainless steel is standard, and 304 stainless steel can be customized.
Voltage can be matched according to the destination country requirement.
Layers can be added according to screening needs, while too many layers may affect efficiency.
Compact structure makes screen mesh replacement more convenient for different materials.
Compact structure and practical configuration make it a cost-effective choice for small batch screening.
4 Small Screening Options
Choose by model, screen frame height, outlet diameter and overall size. Send your material, mesh size, required capacity, voltage and destination port before final selection.

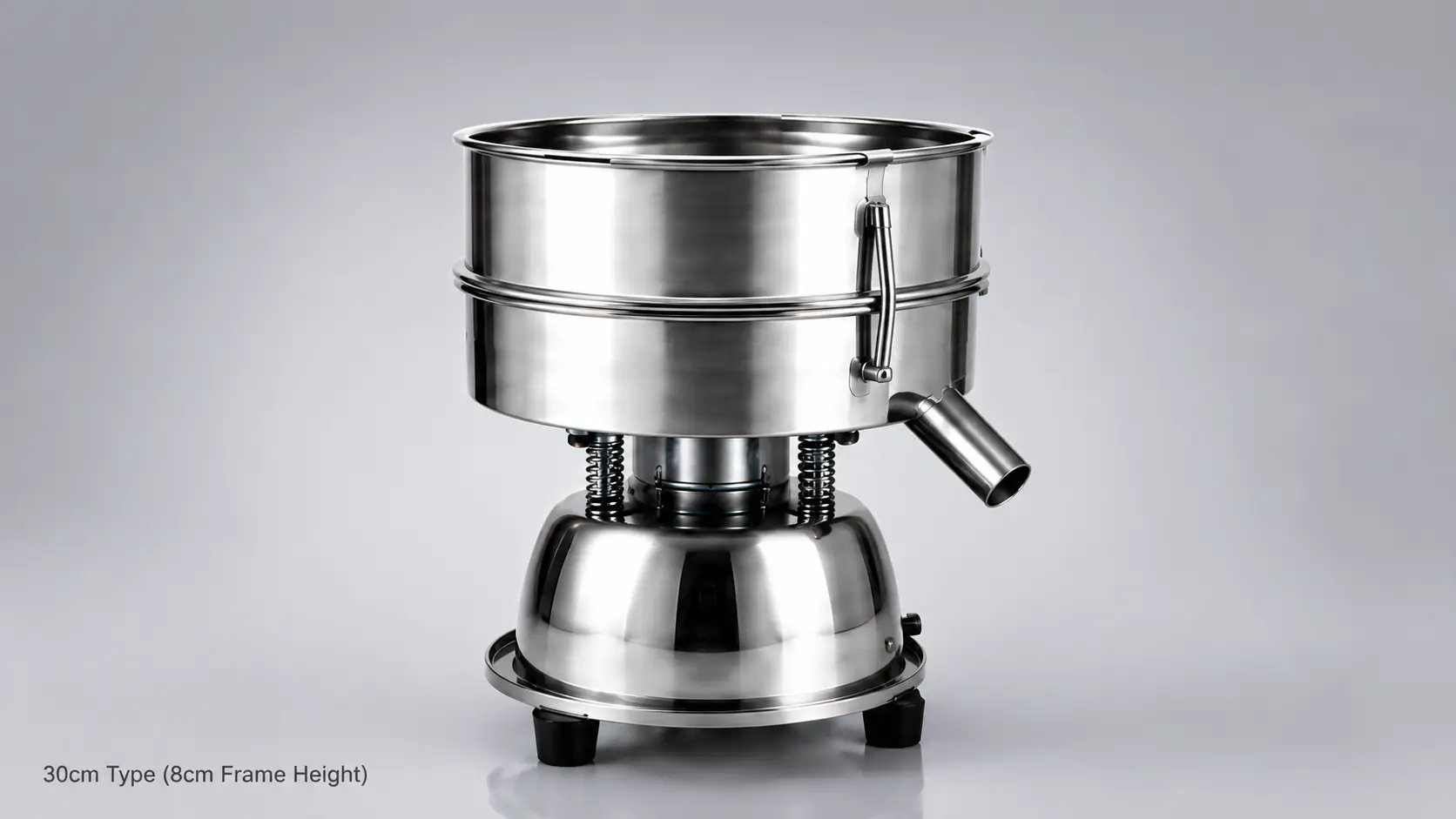

Low Frequency Small Screen
30cm Type / 8cm Frame Height
Compact low-frequency screening equipment for powder, particles, samples and small batch material separation.
Selection Notes
Diameter 30cm, frame height 8cm, overall height 34.5cm. Voltage and layers can be customized.

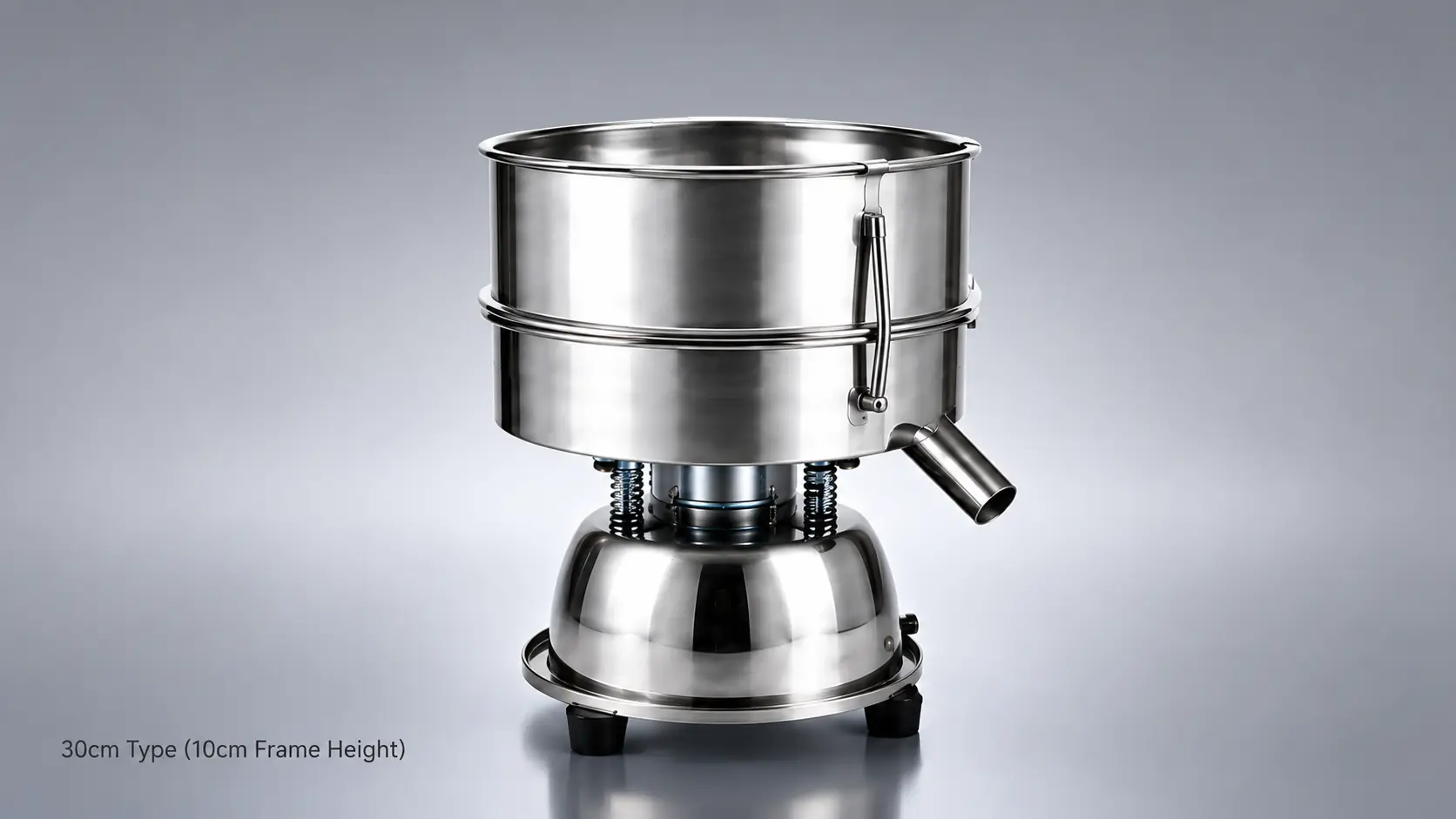

Low Frequency Small Screen
30cm Type / 10cm Frame Height
Compact low-frequency screening equipment for powder, particles, samples and small batch material separation.
Selection Notes
Diameter 30cm, frame height 10cm, overall height 37.5cm. Voltage and layers can be customized.

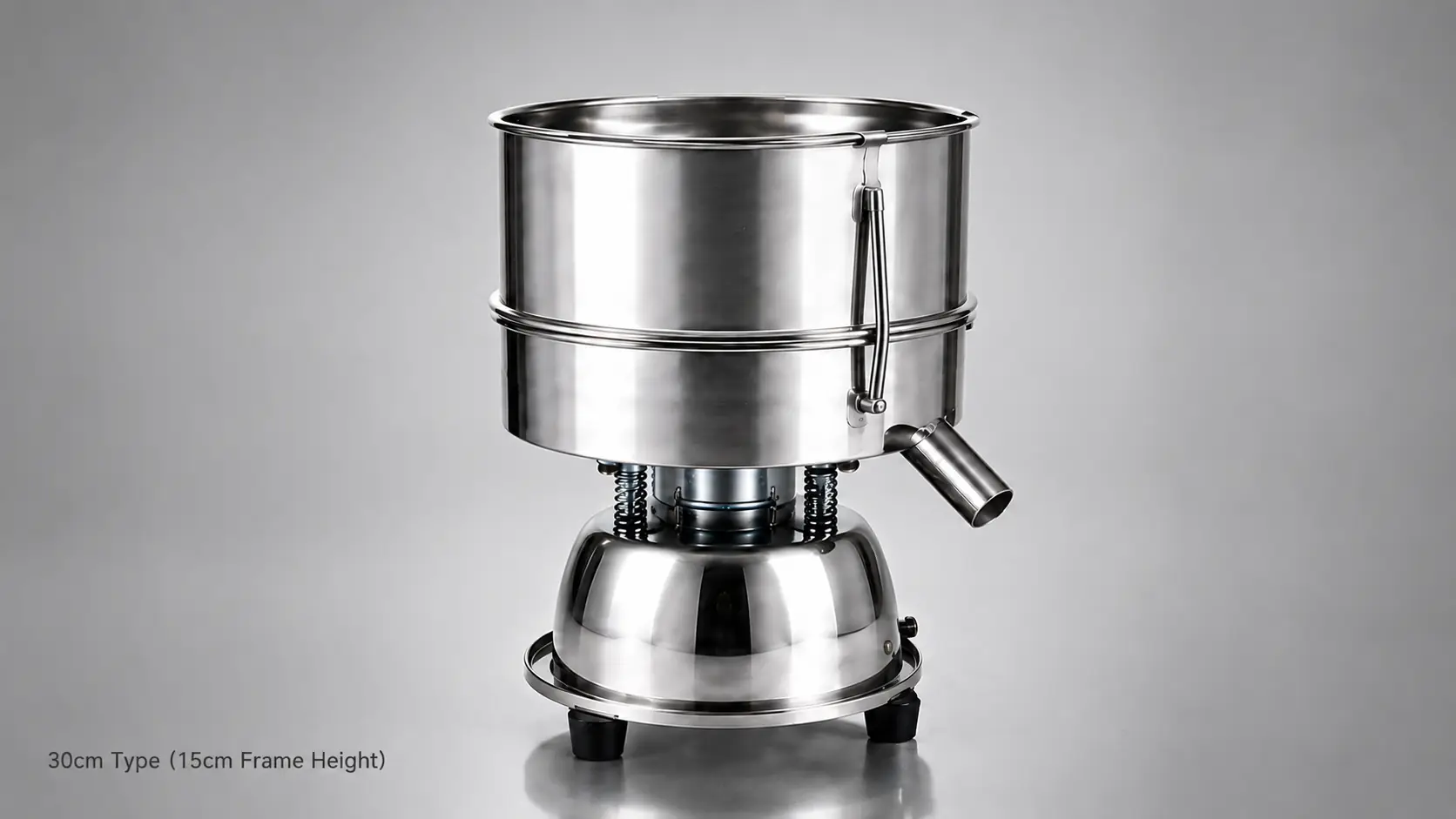

Low Frequency Small Screen
30cm Type / 15cm Frame Height
Compact low-frequency screening equipment for powder, particles, samples and small batch material separation.
Selection Notes
Diameter 30cm, frame height 15cm, overall height 43.5cm. Voltage and layers can be customized.

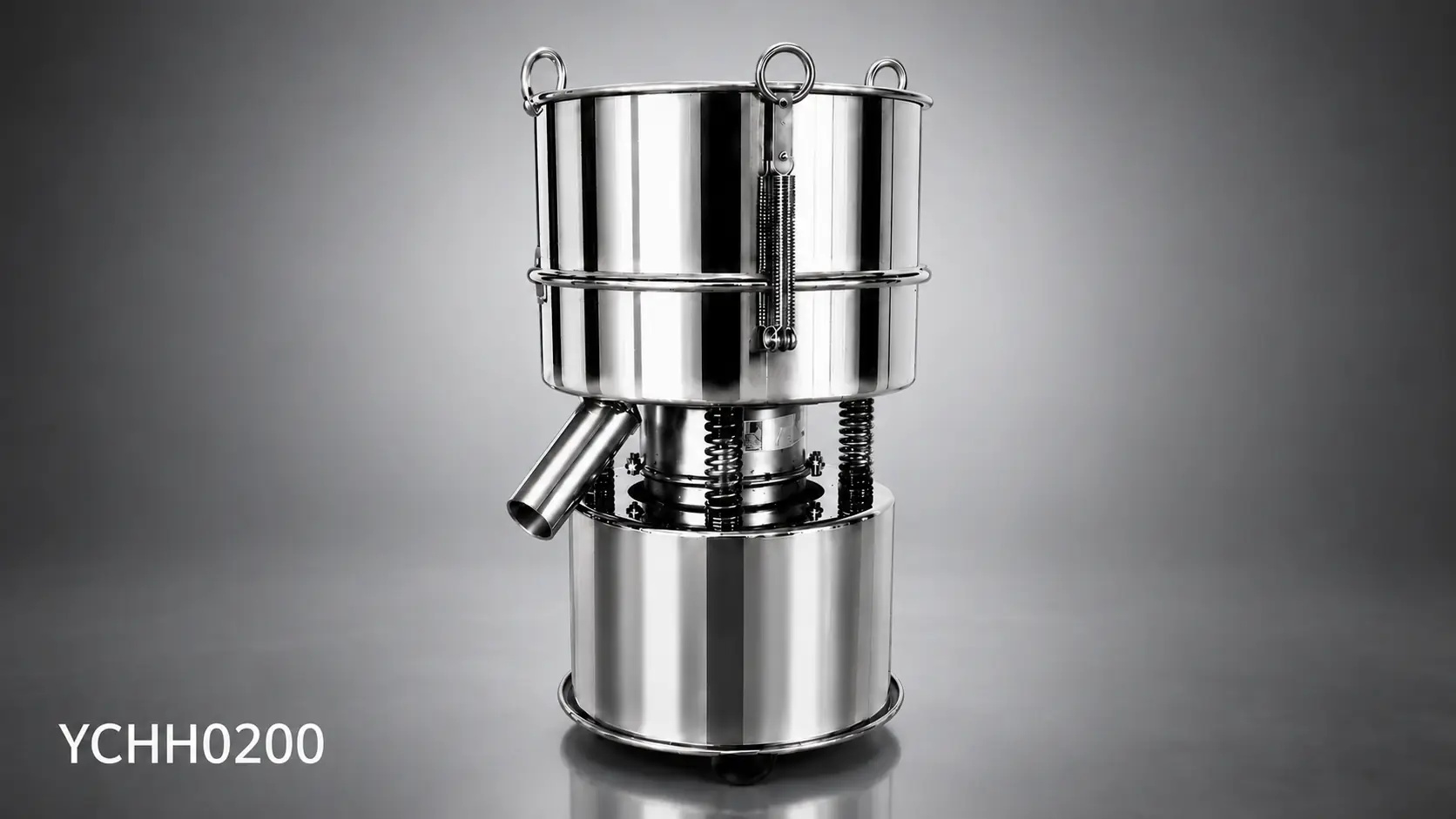

Low Frequency Small Screen
Mini Type / 20cm Width
Compact low-frequency screening equipment for powder, particles, samples and small batch material separation.
Selection Notes
Overall width 20cm, frame height 10cm, overall height 37cm. Voltage and layers can be customized.
Real Machine Footage
This is real footage of our low-frequency small vibrating screen. Play the video to inspect the compact machine motion before discussing sample material, mesh, layers and small-batch screening requirements.
Laboratory and Small-Batch Screening
Low-frequency small vibrating screens are commonly used for laboratory samples and small factory batches. Multiple decks can be discussed when material needs to be divided into several grades, including tea leaf grading.
Selection note: The number of decks should match the material and the required grades. Adding too many layers can affect screening performance.
Selection Information
A model number alone is not enough for final equipment selection. Share the material condition and screening target so the machine structure can be reviewed for your process.
Get a Screening RecommendationSelection FAQ
01
Please send the material name and condition, feed particle size when known, target mesh size, required capacity, number of fractions, voltage and destination country or port.
02
It can be discussed for multi-grade tea leaf screening, including green tea leaves, black tea leaves, broken tea, tea stems and tea dust separation. Confirm the required grades and acceptable breakage before choosing the deck structure.
03
Multiple decks can be considered when laboratory or small-factory material needs to be divided into several grades. The final number of decks should match the material and screening target because too many layers can affect performance.
04
Besides tea, discussions can include dried herbs, dried flowers, coffee beans, sesame seed samples, plastic granule samples, feed pellet samples, fertilizer granule samples and laboratory powder samples. Confirm the material condition and grading target before selection.
05
201 stainless steel is standard, and 304 stainless steel can be customized.
06
Material condition can affect the final configuration. Testing or further technical confirmation can be discussed when the material is wet, sticky, fragile, electrostatic or difficult to screen.
