YCHH0200
YCHH0200 Mini Low Frequency Small Vibrating Screen
Overall width 20cm, frame height 10cm, overall height 37cm with 50W motor and 201 stainless steel is standard, and 304 stainless steel can be customized..
Review the machine image, key specifications and parameter drawing below. Send your material, mesh size, capacity, voltage and destination port for selection confirmation.
Product Parameters
These parameters are for product selection and quotation discussion. Final configuration should be confirmed according to material condition and capacity.
- Product No
- YCHH0200
- Model
- YCHH0200
- Type
- Mini Type
- Dimension Summary
- Overall width 20cm, frame height 10cm, overall height 37cm
- Overall Width
- 20cm
- Screen Frame Height
- 10cm
- Overall Height
- 37cm
- Outlet Diameter
- Phi 38mm
- Motor Power
- 50W
- Material
- 201 stainless steel is standard, and 304 stainless steel can be customized.
- Voltage
- Customized according to country requirements
- Layers
- Customizable according to screening needs
- Layer Note
- Additional layers are available, but too many layers may reduce screening effectiveness.
- Net Weight
- Confirm before shipment
- Gross Weight
- 18 kg
- Packing Size
- Confirm before shipment
- Spring Height
- 11cm
- Base Height
- 13cm

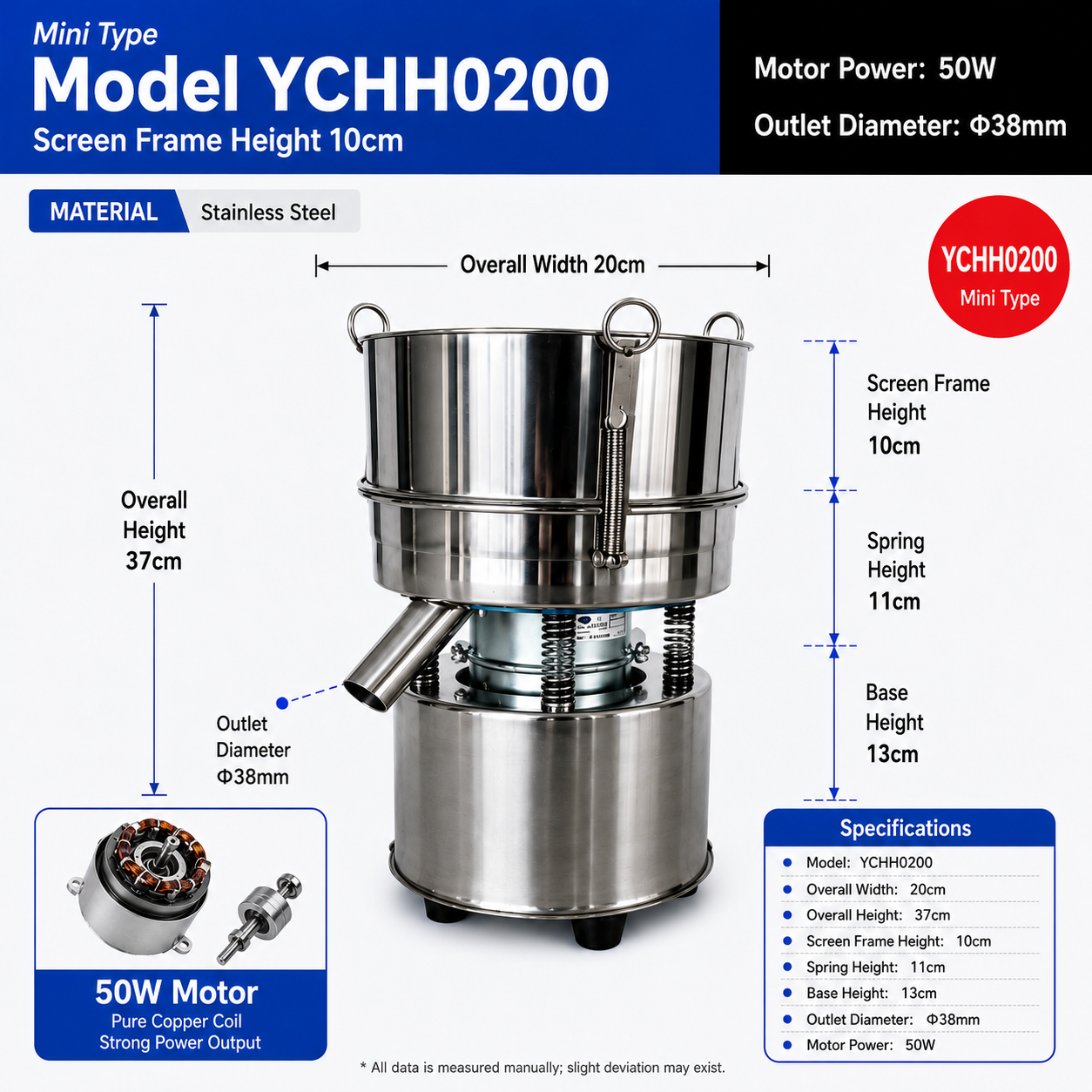

Parameter Image
The parameter drawing is displayed as a complete image without overlays or cropping, so the machine, dimension lines, labels and specifications remain visible.
