YCHH0300-8CM
YCHH0300 Low Frequency Small Vibrating Screen - 8cm Frame Height
Diameter 30cm, frame height 8cm, overall height 34.5cm with 50W motor and 201 stainless steel is standard, and 304 stainless steel can be customized..
Review the machine image, key specifications and parameter drawing below. Send your material, mesh size, capacity, voltage and destination port for selection confirmation.
Product Parameters
These parameters are for product selection and quotation discussion. Final configuration should be confirmed according to material condition and capacity.
- Product No
- YCHH0300-8CM
- Model
- YCHH0300
- Type
- 30cm Type
- Dimension Summary
- Diameter 30cm, frame height 8cm, overall height 34.5cm
- Diameter
- 30cm
- Screen Frame Height
- 8cm
- Overall Height
- 34.5cm
- Outlet Diameter
- 42mm
- Motor Power
- 50W
- Material
- 201 stainless steel is standard, and 304 stainless steel can be customized.
- Voltage
- Customized according to country requirements
- Layers
- Customizable according to screening needs
- Layer Note
- Additional layers are available, but too many layers may reduce screening effectiveness.
- Net Weight
- ~20 kg
- Gross Weight
- 20 kg
- Packing Size
- Confirm before shipment

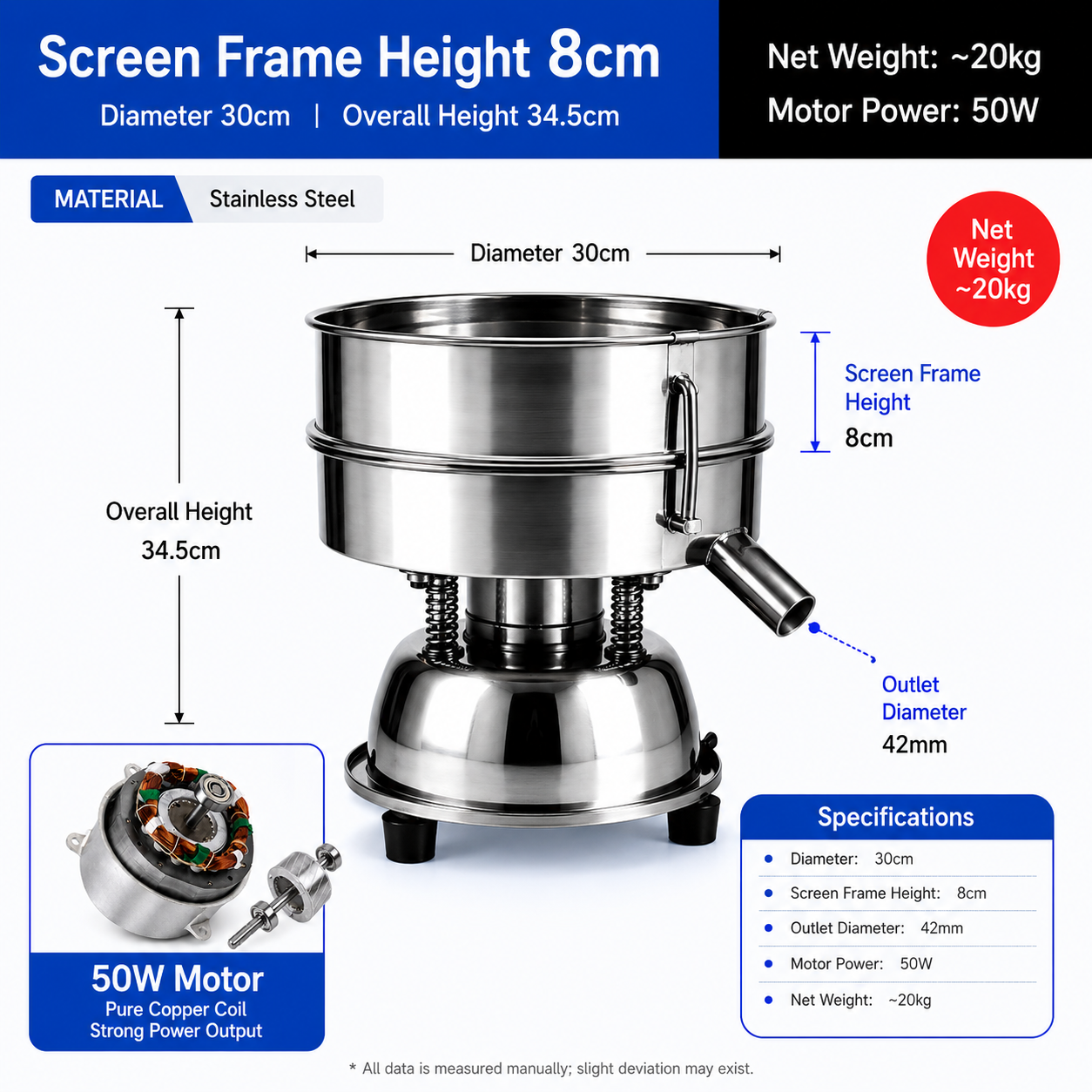

Parameter Image
The parameter drawing is displayed as a complete image without overlays or cropping, so the machine, dimension lines, labels and specifications remain visible.
Discuss Your Screening Requirement
Send the material name, screening target, target mesh, capacity and voltage. You can also request real machine photos or videos through a direct contact channel.
Product First
Start with your material and screening target
Choose a product category, then share the material name and condition, feed size when known, target mesh, required capacity, number of fractions, voltage and destination. This helps us review a suitable product direction.
Ask for Real Machine Photos
Request product photos or short videos before choosing a category.
Share Your Screening Target
Tell us what needs to be screened, graded or removed so we can review the product direction.
Discuss Configuration Options
Review mesh, layers, outlet, voltage and contact material by direct chat.
