YCHH400-D
YCHH400-D Medium Rotary Vibrating Sieve
Diameter 400mm, overall height 540mm with 90W motor. 201 stainless steel is standard, and 304 stainless steel can be customized.
Review the machine image, key specifications and parameter drawing below. Send material, mesh size, capacity, voltage and destination port for selection confirmation.
Product Parameters
These parameters are for product selection and quotation discussion. Final configuration should be confirmed according to material condition and capacity.
- Product No
- YCHH400-D
- Model
- YCHH400-D
- Type
- Medium Rotary Vibrating Sieve
- Dimension Summary
- Diameter 400mm, overall height 540mm
- Diameter
- 400mm
- Overall Height
- 540mm
- Screen Frame Height
- 100mm
- Outlet Diameter
- Phi 60mm
- Outlet Configuration
- Confirm according to material and screening process
- Motor Power
- 90W
- Material
- 201 stainless steel is standard, and 304 stainless steel can be customized.
- Voltage
- Customized according to country requirements
- Layers
- Standard structure; layers can be discussed by screening requirement
- Layer Note
- Layer configuration should be confirmed according to material, mesh size and grading needs.
- Net Weight
- ~30 kg
- Gross Weight
- Confirm before shipment
- Packing Size
- Confirm before shipment
- Base Height
- 250mm
- Base Diameter
- 300mm

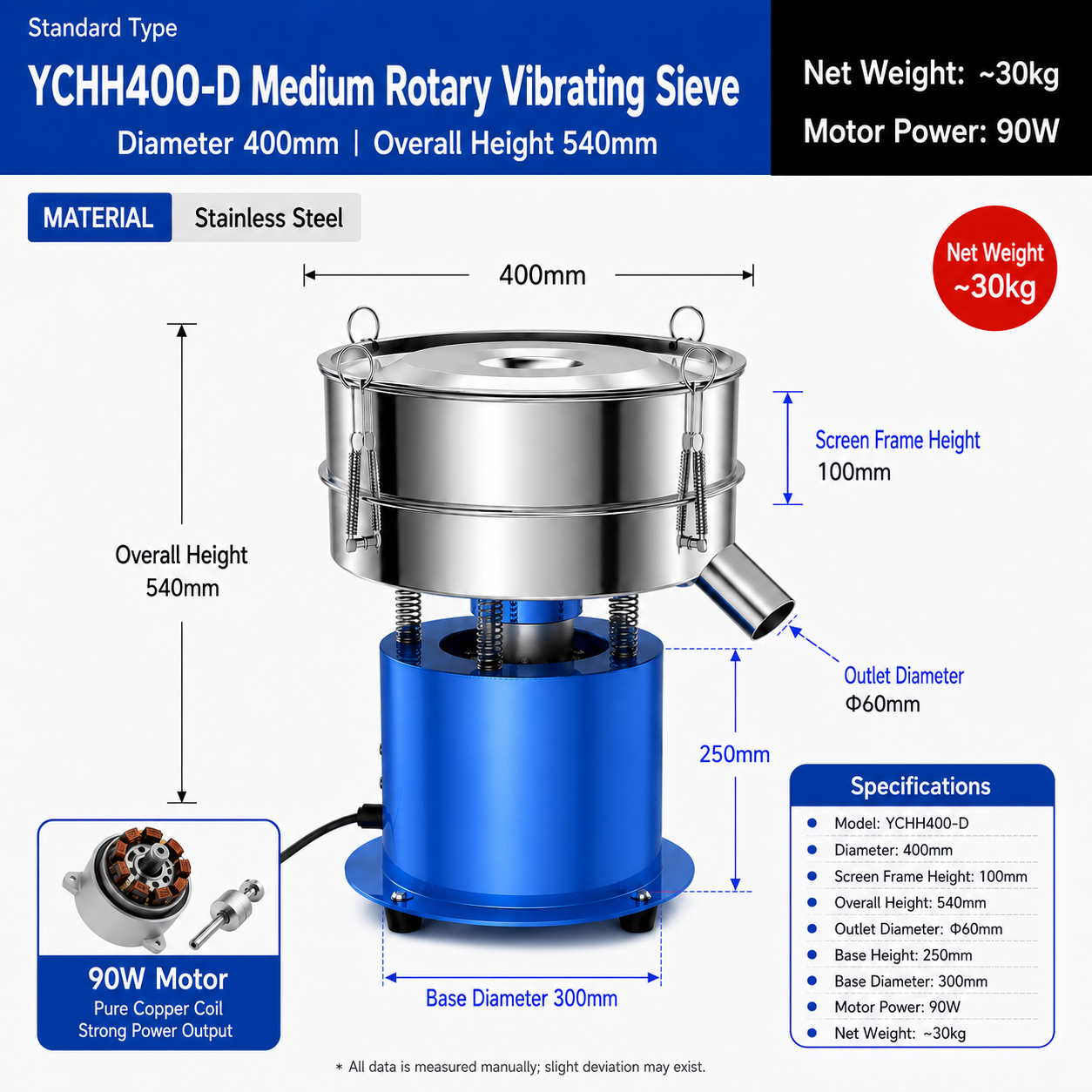

Parameter Image
The parameter drawing is displayed as a complete image without overlays or cropping, so the machine, dimension lines, labels and specifications remain visible.
