ZXS-015
SZ60 Linear Vibrating Screen
ZXS-015 | Standard Type | 2-layer, 3 outlets
Review the machine image, key specifications and English parameter drawing below. Send your material, mesh size, capacity, voltage and destination port for selection confirmation.
Product Parameters
These parameters are for model comparison and quotation discussion. Final machine configuration should be confirmed according to material condition and capacity.
- Product No
- ZXS-015
- Model
- SZ60
- Version
- Standard Type
- Structure
- 2-layer, 3 outlets
- Screen Size
- 1500 x 600
- Screen Area
- 1500x600 mm
- Layers / Outlets
- 2 layer / 3 outlets
- Motor Power
- 600W+600W
- Speed Control
- Standard motor
- Overall Size
- 2000x840x1000 mm
- Machine Height
- 1000 mm with feet / 800 mm without feet
- Body Thickness
- 2.28 mm
- Frame Tube
- 50 x 50 x 1.2mm
- Material
- 201 stainless steel is standard, and 304 stainless steel can be customized.
- Voltage
- 110V / 220V / 380V / 415V, confirm by country
- Net Weight
- 105 kg
- Wooden Case Size
- 1930 x 780 x 660
- Wooden Case Gross Weight
- 130 kg
- Packing Volume
- 0.993564 m3

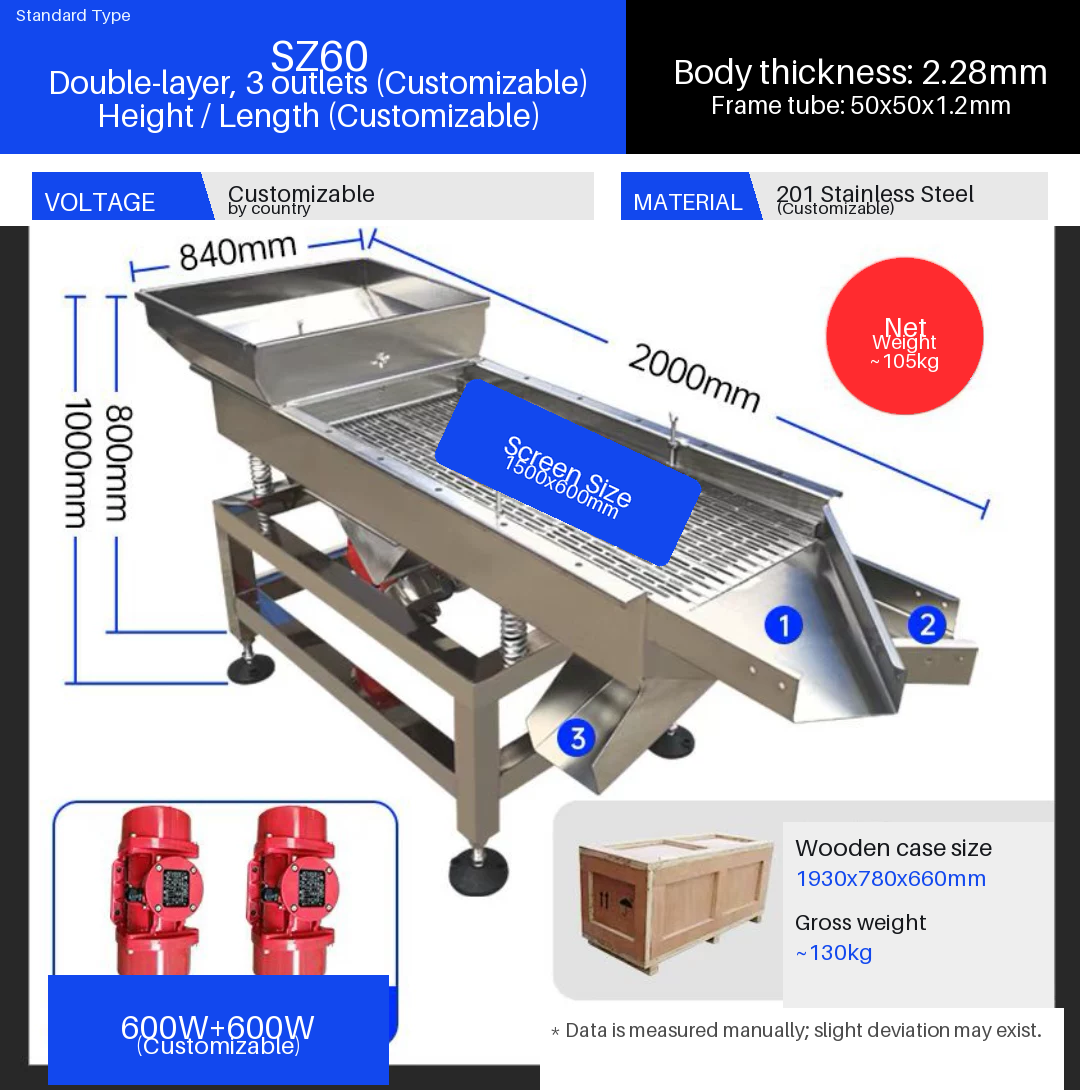

Parameter Image
The parameter drawing is displayed as a complete image without overlays or cropping, so the machine, dimension lines, labels and specifications remain visible.
