500 Low-Frame Direct Outlet Type
500 Low-Frame Direct Outlet Type
500mm screen diameter, 750mm overall height with 120W motor. 201 stainless steel is standard, and 304 stainless steel can be customized.
Review the machine image, key specifications and original parameter drawing below. Send material, mesh size, capacity, voltage and destination port for selection confirmation.
Product Parameters
These parameters are from the supplied parameter drawings. Final configuration should be confirmed according to material condition and capacity.
- Product No
- 500 Low-Frame Direct Outlet Type
- Model
- 500 Low Direct Discharge Vibrating Sieve
- Dimension Summary
- 500mm screen diameter, 750mm overall height
- Screen Diameter
- 500mm
- Overall Height
- 750mm
- Frame Height
- 530mm
- Outlet Height
- 360mm from ground
- Outlet Diameter
- Phi 89mm
- Base Width
- 590mm
- Frame Type
- Low frame
- Outlet Style
- Direct discharge
- Motor Power
- 120W
- Material
- 201 stainless steel is standard, and 304 stainless steel can be customized.
- Voltage
- Customized according to destination country requirements
- Mesh
- Customized according to material and mesh size
- Layers
- Layer structure confirmed by screening requirement
- Net Weight
- ~38kg
- Gross Weight
- Confirm before shipment
- Packing Size
- Confirm before shipment

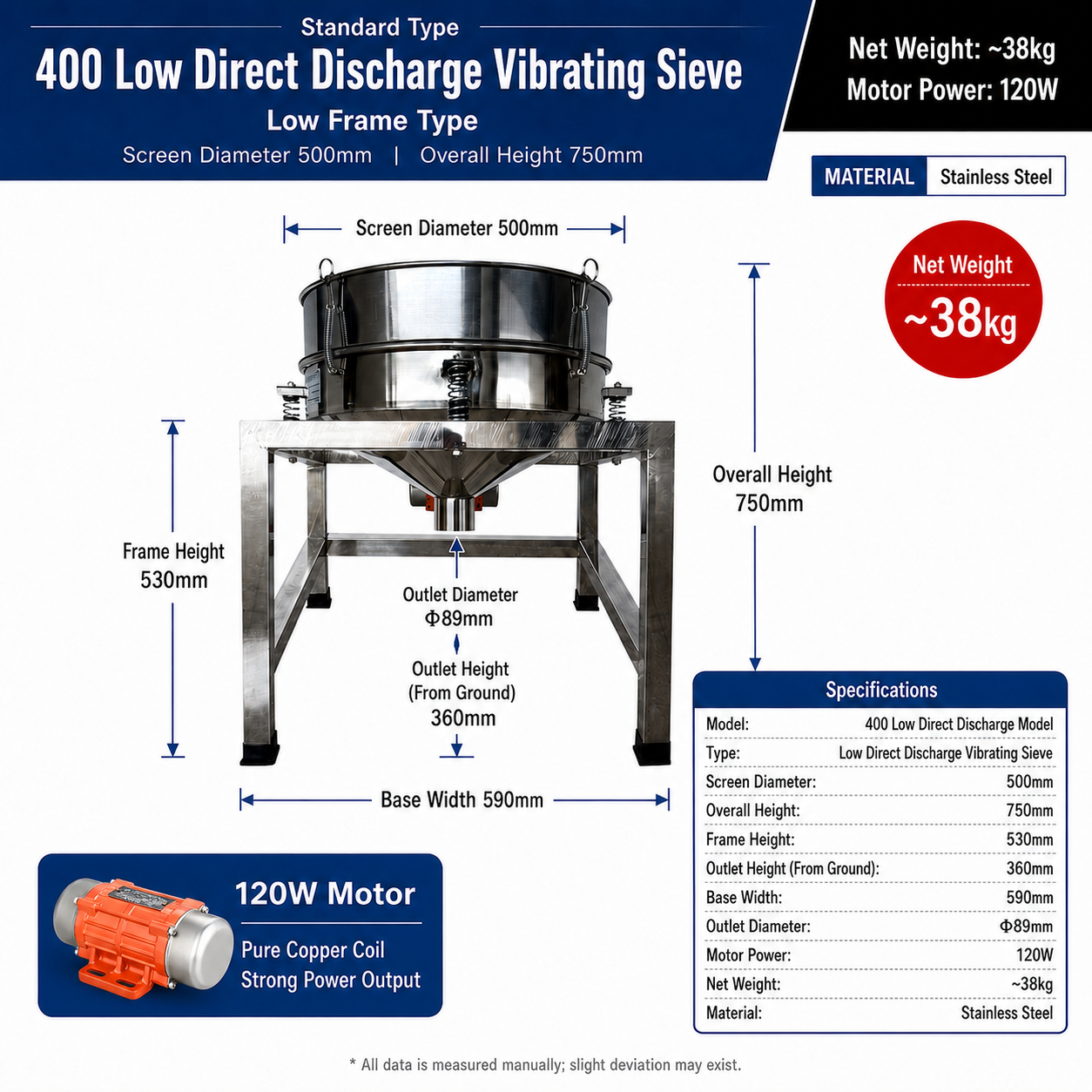

Parameter Image
The parameter drawing is displayed as a complete image without overlays or cropping, so the machine, dimension lines, labels and specifications remain visible.
